maz 543-m nba habitat unit

This model was a conversion that i built up to use up one of the many old dragon scud kits i have in my stash
I built up the very basic drive train in the kit minus the wheels,added basic scratch built axels gearboxes and propshafts,
I then built the left hand side drivers cab the bonet and radiator/grill and fitted it to the chassie,
I then scratch built a new radiator/grill and the right hand side of the bonnet and fenders.from evergreen strip and sheet.

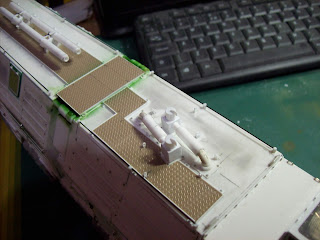

The accomodation unit and generator unit were scratch built from styrene sheet and evergreen strip and then scratch built the gun at the rear and made up and added all the fittings to the vehicle ready to paint.
It was primed and painted using ak acrilic paint and then pinwashed and dry brushed and finally finished with a matt cote
I then cleaned up painted and fitted a set of meng weighted resin wheels..
Its a bit of a long vehicle but is something different untill trumpeter bring theres out to go with there grumble kit.

Comments

AZM-2000 mtlb engineers vehicle...sp designs conversion

AZM 2000 Engineer vehicle This model started out as a SP Designs full resin kit,but it had been molded so badly with numerous defects in the resin. I binned about 80% of the kit and kept only the front rams and the top excavator arm and bucket. So i used the plastic Skif MTLB kit instead and copied all the details from the resin kit and added them to the skif kit. I remade the front dozer blade from styrene sheet and strip. The model was painted with Humbrol green and the camo was sprayed freehand over the top of the green,this was then colour washed and drybrushed with the final finish of matt cote

PPRU-1M (DOG EAR) Command and control vehicle...sp designs

PPRU-1M SBORKA Mobile recon and command post,Nato code name DOG EAR. Based on MT-LBu tracked AFV it is equiped with a radar for the control of tactical air defence systems armed with missiles and artillary such as the Tunguska sa-19,ZSU-23 shilka, strella sa-13.the Sborka is capable of carrying out target designation whilst moving or stationary. The kit is a 1:35 scale resin kit from SP Designs .It did build up quite well, with a bit of coaxing. i needed to add to the kit and chop and change a few items as you do with most resin kits.The tracks are the resin ones supplied with the kit. i painted the model with humbrol enamels and added the camo freehand using an airbrush . i have pinwashed it and then drybrushed it..

BAT-M engineers vehicle ..panzer shop

BAT-M Heavy Engineers vehicle This kit started off as one of the Panzershop full resin kits. There were a lot of missing parts/details missing from this kit and a lot of parts made incorrectly ,so there is about 45% of this kit which is scratch built. The paints are Humbrol and this was applied with an airbrush,i used 3 tins of green paint,one was darkened using a dark green, one was as tin,and the last tin was lightened with a light green. I applied the darkend green over around the joints and around the doors and panels,i then filled in with the normal green and highlighted with the lightened green The whole model was colour washed followed by dry brushing using the 2 lighter shades of green . This model was a gold medal winner at the IPMS UK International Scale model word 2010 -------------------------------------------------------------------------------------------------------------------------------------------------------------
