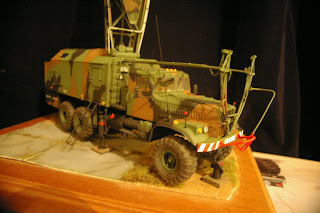

PRV-16B Radar (TALL GUY)

This model was based on the hobby boss kraz truck ,this kit from hobby boss is a peach of a kit to build..
I used the drive train and the cab as the base for this model, i had to stretch the frame rails in the kit and move some parts around like air and fuel tanks .
The coms cabin was scratch built from white plasti card sheet .
I scratch built the radar mast and he radar transport frame out of evergreen rod and tube sections
The radar screen was made from evergreen angle iron sections and i inlaid edward etch mesh into it to form a screen all the rest of the bits and fittings were scratch built or converted from old kit parts.
The model was spray painted as a Serbian vehicle using humbrol enamels and after completing the decals the model was pinwashed , drybrushed and then it was covered in humbrol matt cote.
this model was a gold medal winner at telford ipms scale model world

Comments

BAT-M engineers vehicle ..panzer shop

BAT-M Heavy Engineers vehicle This kit started off as one of the Panzershop full resin kits. There were a lot of missing parts/details missing from this kit and a lot of parts made incorrectly ,so there is about 45% of this kit which is scratch built. The paints are Humbrol and this was applied with an airbrush,i used 3 tins of green paint,one was darkened using a dark green, one was as tin,and the last tin was lightened with a light green. I applied the darkend green over around the joints and around the doors and panels,i then filled in with the normal green and highlighted with the lightened green The whole model was colour washed followed by dry brushing using the 2 lighter shades of green . This model was a gold medal winner at the IPMS UK International Scale model word 2010 -------------------------------------------------------------------------------------------------------------------------------------------------------------

PPRU-1M (DOG EAR) Command and control vehicle...sp designs

PPRU-1M SBORKA Mobile recon and command post,Nato code name DOG EAR. Based on MT-LBu tracked AFV it is equiped with a radar for the control of tactical air defence systems armed with missiles and artillary such as the Tunguska sa-19,ZSU-23 shilka, strella sa-13.the Sborka is capable of carrying out target designation whilst moving or stationary. The kit is a 1:35 scale resin kit from SP Designs .It did build up quite well, with a bit of coaxing. i needed to add to the kit and chop and change a few items as you do with most resin kits.The tracks are the resin ones supplied with the kit. i painted the model with humbrol enamels and added the camo freehand using an airbrush . i have pinwashed it and then drybrushed it..

UR-77 meteorit mine clearing system

UR-77 METIORITE Mine clearing system UR-77 , the model is a conversion set from SP Designs for the Skif 2S1 SPH . It was a nice easy conversion consisting of a resin turret,rear support beams and a few small ancillarys. I used part of an Eduard etch kit and the rest is just plastic and brass wire. The tracks are metal ones from Fruil
